3104P NVR Bricked

[iTuneDVR]

Restore all previous link or insert photos it as attaches.

[chamek]

I will reupload them

[chamek]

[iTuneDVR]

Make MB photo in good quality like in viewtopic.php?t=641#p2020
All must be easy.
But if you already brake bootload, you nothing to see via TTL.

[chamek]

Make MB photo in good quality like in viewtopic.php?t=641#p2020
All must be easy.
But if you already brake bootload, you nothing to see via TTL.

this better?

[iTuneDVR]

YES!

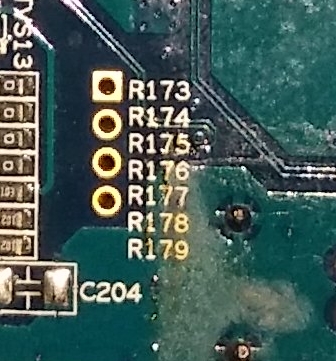

What on pins in inside white plastic?

[iTuneDVR]

What is your TTL2RS232 adapter? COM, USB?
Possible this.
(possible +5V), Gd,Rx,Tx

Testin it, but if no luck, need reflash with full image.

[chamek]

What is your TTL2RS232 adapter? COM, USB?
Possible this.
(possible +5V), Gd,Rx,Tx

Testin it, but if no luck, need reflash with full image.

The cable is TTL2RS232 USB.
+5v is the square conection?

[iTuneDVR]

+5v is the square conection?

You have power tester at your hand?
Test all thiese pins!

[chamek]

ok i will try no power need or do i need to plug it on electric?
